Headwall Co-Aligned VNIR-SWIR

Evolution of Hyperspectral Excellence

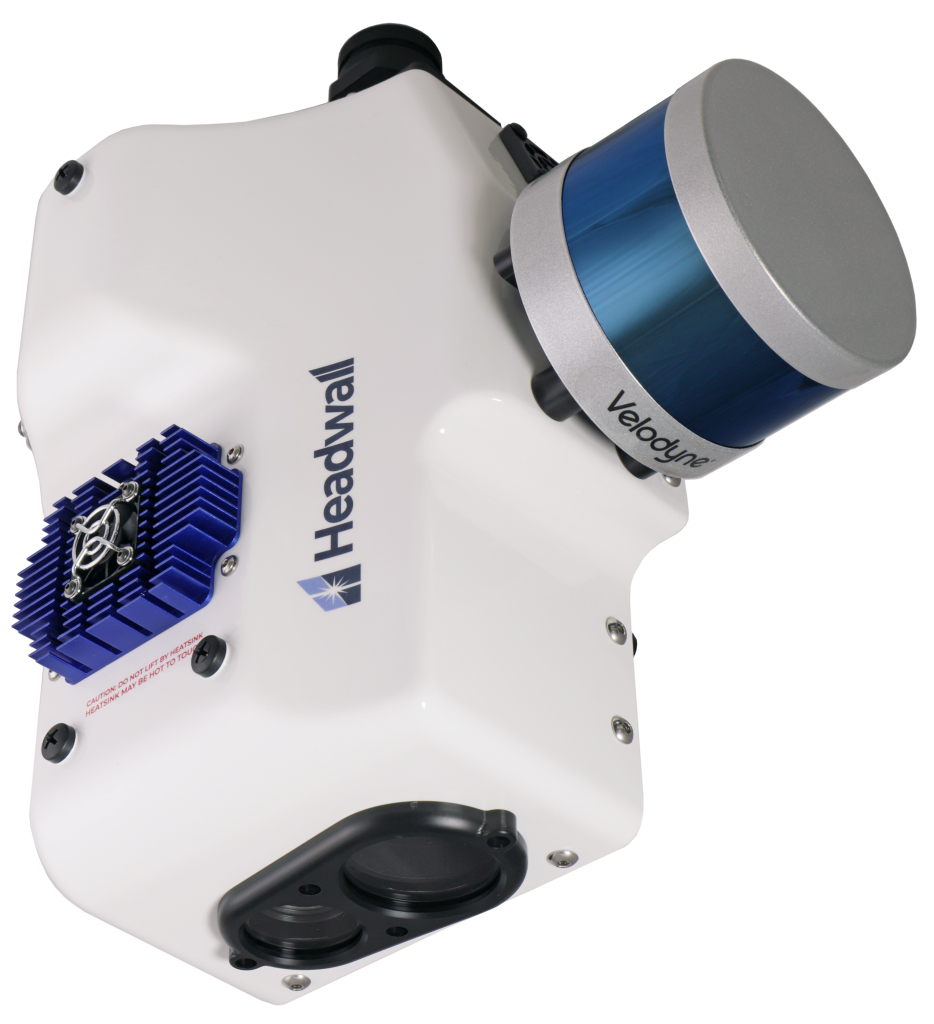

Headwall’s original Hyperspec® Co-Aligned VNIR-SWIR sensor became the bestselling system of its kind. The next generation Co-Aligned HP™ VNIR-SWIR features improved VNIR spatial resolution, as well as a greater number of spectral bands in an exceptionally small, light, and power-efficient form factor.

The Co-Aligned HP can be purchased as
a payload for integration onto compatible
UAVs or as part of integrated turnkey systems that include the drone. These
include the DJI Matrice 600 Pro and the
Freefly Alta X that is made in the USA and supports NDAA-compliance.

Optional sensors and accessories such as
LiDAR and can be incorporated into payloads suitable for your needs.

Features

Discover Key Features

Specifications

Unveiling the Power and Performance Details

  • Spectral Bands
  • VNIR, 400–1000nm 340
  • SWIR, 900–2500nm 267
  • Spatial Pixels
  • VNIR, 400–1000nm 1020
  • SWIR, 900–2500nm 640
  • Camera Technology
  • VNIR, 400–1000nm CMOS
  • SWIR, 900–2500nm MCT
  • Pixel Pitch
  • VNIR, 400–1000nm 5.86 µm
  • SWIR, 900–2500nm 15 µm
  • Aperture
    f/ 2.5
  • Slit Length
  • VNIR, 400–1000nm 6 mm
  • SWIR, 900–2500nm 10.4 mm
  • Dispersion/Pixel
  • VNIR, 400–1000nm 1.76 nm
  • SWIR, 900–2500nm 6 nm
  • Entrance Slit Width
  • VNIR, 400–1000nm 20 µm
  • SWIR, 900–2500nm 15 µm
  • Spectral FWHM
  • VNIR, 400–1000nm 20 m
  • SWIR, 900–2500nm 8 nm
  • Frame Rate (Sustained)
  • VNIR, 400–1000nm 250 Hz
  • SWIR, 900–2500nm 200 Hz
  • ADC Bit Depth
  • VNIR, 400–1000nm 12-bits
  • SWIR, 900–2500nm 16-bits
  • Cooling
  • VNIR, 400–1000nm No
  • SWIR, 900–2500nm Stirling-Cooled
  • Spectrograph Design
    Co-Aligned & Aberration-Corrected
  • Digital Interface
    GigE
  • GPS/IMU
    Applanix APX-15
  • Data Storage on Payload
    480 GB Solid-State for Each Sensor
  • Weight (sensor only)
    4.0 kg / 8.8 lbs5
  • Dimensions (sensor only)
    272 x 211 x 165 mm
  • Power req (typical / max)
  • VNIR, 400–1000nm 14.4 W / 36 W
  • SWIR, 900–2500nm 37 W / 40 W
  • Operational Temp Range
    0 – 40 °C
  • Storage Temp Range
    -20 – 60 °C
  • Compatible UAVs
    DJI Matrice 600 Pro, Freefly Alta X
