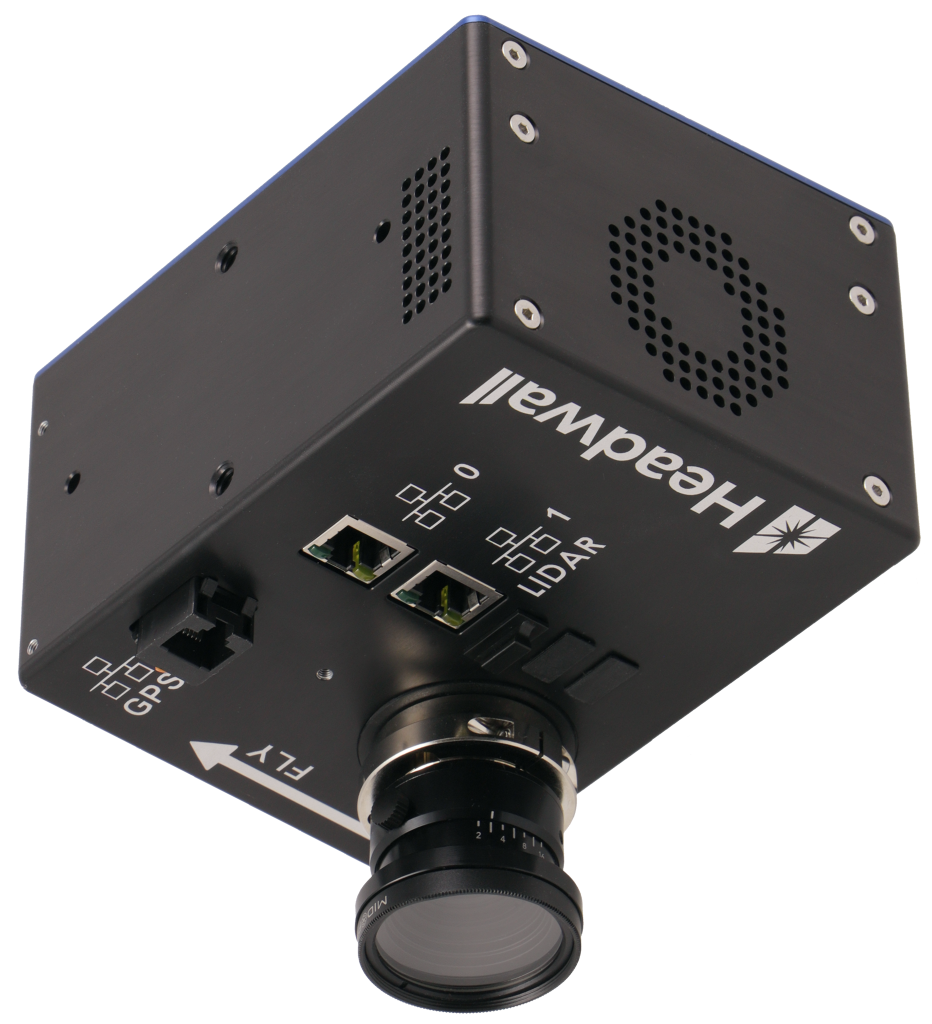

Headwall Nano HP

The Best Selling System of it's Kind

Headwall’s original Nano-Hyperspec®
took the remote-sensing community by storm, becoming the best-selling system of its kind. The next-generation Nano™ HP features improved spatial resolution, as well as a greater number of spectral bands in an exceptionally small, light, and power efficient form factor.

The Nano HP can be purchased as a
payload for integration onto compatible UAVs, and also as part of integrated “turnkey” systems that include the drone.

These include the DJI Matrice 300 RTK1, DJI Matrice 600 Pro, as well as the FreeFly Alta X that is made in the USA and supports NDAA-compliance.

Optional sensors and accessories such
as LiDAR and thermal-imagers2
can be incorporated into payloads suitable for your needs.

Features

Discover Key Features

Specifications

Unveiling the Power and Performance Details

  • Wavelength Range 400 – 1,000 nm
  • Spectral Bands 340
  • Spatial Pixels 1020
  • Camera Technology CMOS
  • Pixel Pitch 5.86 µm
  • Aperture f/2.5
  • Dispersion/Pixel 1.76 nm
  • Entrance Slit Width 20 µ
  • Spectral FWHM 6 nm
  • Frame Rate (Sustained) 250 Hz
  • ADC Bit Depth 12 bits
  • Spectrograph Design Aberration-Corrected
  • Digital Interface GigE
  • GPS/IMU Internally Mounted High-Performance with PPK4
  • Data Storage on Payload 480 GB Solid-State
  • Weight (without / with LiDAR) 1.05 kg (2.32 lbs) / 1.73 kg (3.81 lbs)
  • Base Dimensions (without / with LiDAR) 132 x 102 x 73 mm (5.2 x 4.0 x 2.9 in) / 132 x 175 x 99 mm (5.2 x 6.9 x 3.9 in)
  • Power without LiDAR (typical) 14.4 W
  • Operational Temp Range 0 – 40 °C / 32 – 104 °F
  • Storage Temp Range -20 – 60 °C / -4 – 140 °F
